     Home  >> Products >> Spanners >> BI-HEXAGONAL RING SPANNERS DEEP OFFSET





METRIC SIZES SETS
SET NO. No. of Pieces SIZES - mm QTY./CTN.
Set		 G.W.
KGS.		 VOLUME
Cu.M.
6m 6 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 40 26.2 .038
8m 8 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 20 23.7 .037
10m 10 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 10 20.1 .032
12m 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 10 30.0 .033
122m 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 10 30.2 .033

AO-S 124 CV
AO-S 124 CV GS

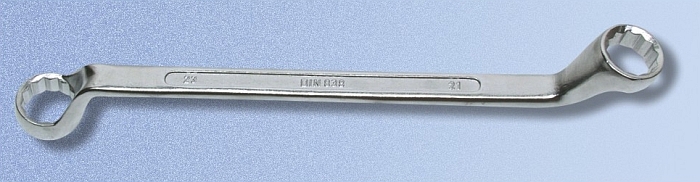

BI-HEXAGONAL RING SPANNERS DEEP OFFSET
  DIN 838
  Each Head Set at 15° Angle
  Drop Forged from Chrome-Vanadium Steel
  Hardened and Tempered
  Chrome Plated, Mirror Polished Ring
SIZE LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.		 VOLUME
Cu. M.
MM INCH
6x7 1/4x5/16 170 400 23.8 .022
8x9 - 180 300 22.4 .016
10x11 3/8x7/16 195 240 22.3 .018
12x13 - 210 200 24.2 .022
14x15 1/2x9/16 225 160 23.7 .024
16x17 5/8x11/16 245 120 19.7 .021
18x19 3/4x25/36 266 80 19.0 .020
20x22 13/16x7/8 285 80 24.6 .023
21x23 - 305 60 21.5 .022
24x26 - 325 60 26.0 .022
24x27 15/16x1 325 40 17.5 .021
25x28 - 345 40 19.5 .020
27x32 1.1/16x1.1/4 370 40 23.6 .023
30x32 - 370 40 23.6 .023
