     Home  >> Products >> Spanners >> BI-HEXAGONAL RING SPANNERS SHALLOW OFFSET








METRIC SIZES SETS
SET NO. No. of Pieces SIZES - mm QTY./CTN.
Set		 G.W.
KGS.		 VOLUME
Cu.M.
6M 6 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 40 22.9 .038
8M 8 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 20 21.3 .037
10M 10 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 10 18.7 .032
12M 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 10 29.4 .033
122M 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 10 29.8 .033


AO-S 126 CV
AO-S 126 CV GS

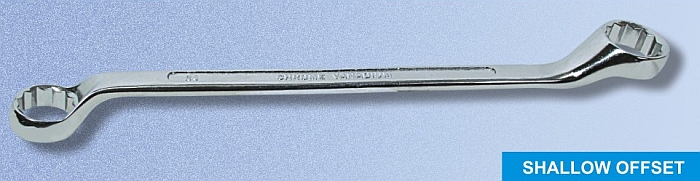

BI-HEXAGONAL RING SPANNERS SHALLOW OFFSET
  DIN 838
   Drop Forged from CHROME VANADIUM STEEL
  Hardened and Tempered
  Chrome Plated, Mirror Polished Ring

SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.
6x7 170 400 19.0
8x9 174 300 17.9
10x11 190 240 19.9
12x13 205 200 20.6
14x15 215 160 22.2
16x17 235 120 19.2
18x19 270 80 18.0
20x22 275 80 21.0
21x23 307 60 21.2
24x26 325 60 24.5
24x27 325 40 17.5
25x28 345 40 20.3
27x32 382 40 27.0
30x32 382 40 27.0
