     Home  >> Products >> Spanners >> DOUBLE ENDED OPEN JAW SPANNER











AO-S 109
DOUBLE ENDED OPEN JAW SPANNER

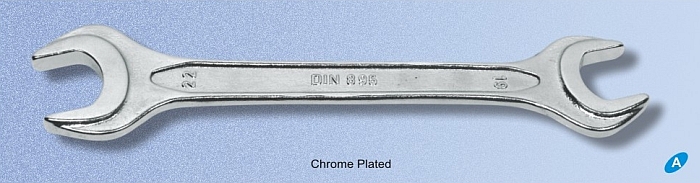

A Chrome Plated

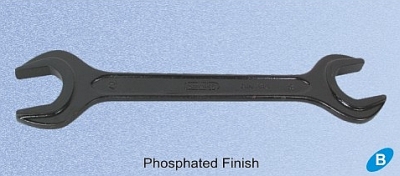

B Phosphated Finish

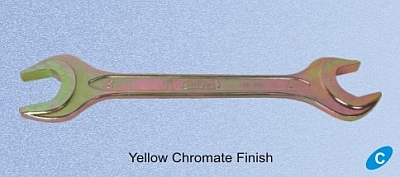

C Yellow Chromate Finish

  DIN 895
  Drop Forged from CARBON STEEL                                                 DIN
  Hardened and Tempered                                                                  895
SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.		 VOLUME
Cu. M.
6x7 95 800 13.5 .012
8x9 105 600 13.5 .012
8x10 115 600 16.4 .017
9x10 120 600 18.2 .018
10x11 120 400 12.6 .013
10x12 120 400 19.4 .018
10x13 120 400 17.0 .016
12x13 140 300 14.9 .014
12x14 140 300 14.9 .014
13x15 150 300 17.9 .017
14x15 150 200 12.6 .013
13x17 160 200 14.4 .014
14x17 160 200 15.0 .015
16x17 160 160 13.4 .013
16x18 160 160 13.6 .013
17x19 170 160 17.4 .017
18x19 170 120 13.4 .014
17x22 190 120 16.4 .016
18x21 190 120 14.6 .014
19x22 190 120 17.0 .017
19x24 215 120 21.9 .019
20x22 190 100 15.4 .015
21x23 215 80 14.6 .014
22x24 215 80 16.1 .015
24x27 240 60 15.3 .015
24x30 264 60 18.7 .018
25x28 264 40 12.5 .013
27x30 270 40 13.9 .014
27x32 270 40 15.1 .015
30x32 270 40 16.9 .016
30x36 285 40 20.7 .018
32x36 305 30 16.0 .015
36x41 345 30 22.8 .019
41x46 380 20 20.2 .018
46x50 420 20 25.7 .020
