     Home  >> Products >> Spanners >> DOUBLE ENDED OPEN JAW SPANNERS LONG PATTERN - SPECIAL TYPE

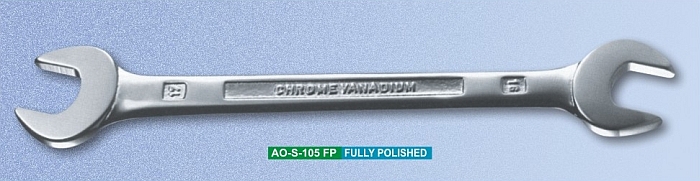

AO-S 105 CV
DOUBLE ENDED OPEN JAW SPANNERS LONG PATTERN - SPECIAL TYPE
  Drop Forged From Chrome Vanadium Steel
  Hardened and tempered
  Each Head Set at 15° Angle
  Chrome Plated, Fully Polished/Satin Finish




SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.		 VOLUME
Cu. M.
6x7 125 800 19.8 .012
8x9 140 600 26.0 .017
10x11 157 400 22.6 .018
12x13 172 300 21.2 .016
14x15 189 200 24.8 .020
16x17 205 160 20.5 .021
18x19 222 120 23.3 .015
20x22 236 100 25.1 .012
21x23 249 80 23.1 .012
24x26 279 60 20.2 .011
24x27 279 60 20.5 .011
25x28 280 40 17.4 .015
27x32 302 40 18.9 .015
30x32 302 40 20.5 .015
METRIC SIZES SETS
SET NO. No. of Pieces SIZES - mm QTY./CTN.
Set		 G.W.
KGS.		 VOLUME
Cu.M.
6M 6 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 60 26.2 .018
8M 8 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 30 26.2 .018
10M 10 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 20 30.0 .016
12M 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 12 18.9 .016
122M 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 12 28.8 .022
