     Home  >> Products >> Spanners >> DOUBLE ENDED OPEN JAW SPANNERS SHORT PATTERN - SPECIAL TYPE




AO-S 107 CV

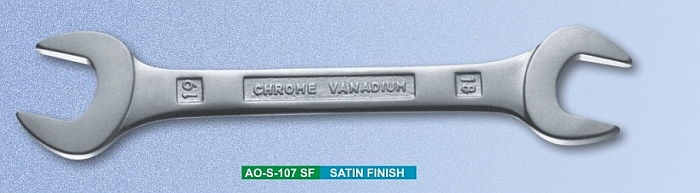

DOUBLE ENDED OPEN JAW SPANNERS SHORT PATTERN - SPECIAL TYPE
  Drop Forged From CHROME VANADIUM STEEL
  Hardened and tempered
  Each Head Set at 15° Angle
  Chrome Plated, Fully Polished/Satin Finish

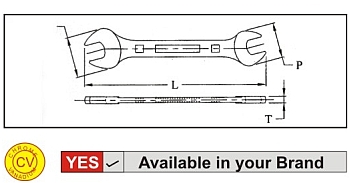

SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.		 VOLUME
Cu. M.
6x7 94.5 800 12.6 .008
8x9 104.5 600 17.0 .009
10x11 120.0 400 16.2 .015
12x13 130.0 300 17.3 .013
14x15 149.5 200 15.6 .012
16x17 161.5 160 16.5 .014
18x19 177.5 120 14.6 .015
20x22 197.0 100 18.0 .010
21x23 207.0 80 16.2 .011
24x26 234.5 60 14.6 .011
24x27 234.5 60 14.6 .015
25x28 244.5 40 17.9 .015
27x32 261.0 40 18.8 .015
30x32 261.0 40 18.8 .015
METRIC SIZES SETS
SET NO. No. of Pieces SIZES - mm QTY./CTN.
Set		 G.W.
KGS.		 VOLUME
Cu.M.
6M 6 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 80 25.0 .017
8M 8 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 40 24.3 .015
10M 10 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 20 20.9 .014
12M 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 16 30.6 .022
122M 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 16 30.6 .022
