     Home  >> Products >> Spanners >> COMBINATION OPEN & DEEP OFFSET RING END SPANNER




METRIC SIZES SETS
SET NO. No. of Pieces (MM) METRIC SIZES SETS QTY./CTN.
Sets		 G.W.
KGS.		 VOLUME
Cu.M.
6M 6  8,9,10,11,13,17 80 33.1 .028
06M 6  10,11,13,14,17,19 - - -
7M 7  8,10,11,12,13,14,17 - - -
8M 8  6,8,10,11,13,14,17,19 50 26.4 .037
88M 8  8,9,10,11,13,17,19,21 40 24.00 .038
080M 8  8,9,10,11,13,14,17,19 - - -
08M 8  10,12,13,14,17,19,22,24 - - -
10M 10  10,11,12,13,14,15,16,17,
 18,19		 30 24.2 .037
12M 12  6,7,8,9,10,11,12,13,14,17,
 19,22		 30 36.00 .033
0112M 12  6,7,8,9,10,11,12,13,14,15,
 17,19		 - - -
012M 12  10,11,12,13,14,17,19,22,24,
 27,30,32		 - - -
16M 16  10,11,12,13,14,15,16,17,18,
 19,20,21,22,23,24,26		 12 39.0 .022
17M 17  6,7,8,9,10,11,12,13,14,15,
 16,17,18,19,20,21,22		 - - -
18M 18  6,7,8,9,10,11,12,13,14,15,
 16,17,18,19,20,21,22,24		 - - -
26M 26  6,7,8,9,10,11,12,13,14,15,
 16,17,18,19,20,21,22,23,
 24,25,26,27,28,29,30,32		 6 41.4 .023



AO-S 118 CV

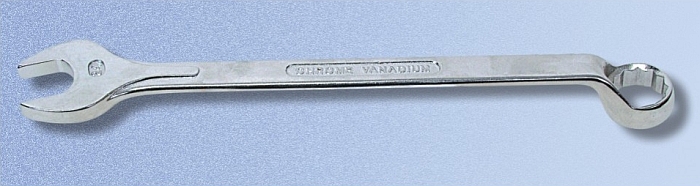

COMBINATION OPEN & DEEP OFFEET RING END SPANNER
   DIN 3113B
  Metric Dimensions from 6 to 32mm
  Same size each end
  Deep offset ring end at 10°
  Drop forged from CHROME VANADIUM STEEL
  Hardened and Tempered
  Chrome Plated, Mirror Polished Ring
SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.		 VOLUME
Cu. M.
6 100 1000 20.4 .017
7 112 1000 26.4 .017
8 125 800 23.8 .018
9 138 600 23.6 .021
10 148 600 30.8 .021
11 158 500 28.4 .024
12 168 400 27.0 .025
13 185 300 22.7 .021
14 198 300 28.4 .021
15 210 200 27.8 .022
16 220 200 29.8 .023
17 232 200 33.0 .023
18 245 160 30.4 .020
19 256 120 24.3 .022
20 270 120 31.7 .026
21 280 100 29.8 .036
22 292 100 31.0 .024
23 305 80 26.4 .028
24 318 80 30.4 .028
25 328 60 25.4 .024
26 340 60 31.4 .024
27 352 60 33.2 .021
28 370 40 24.3 .019
29 370 40 28.4 .017
30 390 40 28.3 .019
32 412 40 29.4 .019
