     Home  >> Products >> Spanners >> COMBINATION OPEN & DEEP OFFESET RING END SPANNERS - COLD STAMPED - PROFESSIONAL










METRIC SIZES SETS
SET NO. No. of Pieces (MM) METRIC SIZES SETS QTY./CTN.
Sets		 G.W.
KGS.		 VOLUME
Cu.M.
6M 6  8,9,10,11,13,17 80 30.2 .029
06M 6  10,11,13,14,17,19 - - -
7M 7  8,10,11,12,13,14,17 - - -
8M 8  6,8,10,11,13,14,17,19 50 30.4 .030
88M 8  8,9,10,11,13,17,19,21 40 31.0 .031
080M 8  8,9,10,11,13,14,17,19 - - -
08M 8  10,12,13,14,17,19,22,24 - - -
10M 10  10,11,12,13,14,15,16,17,
 18,19		 30 29.4 .028
12M 12  6,7,8,9,10,11,12,13,14,17,
 19,22		 30 28.9 .027
0112M 12  6,7,8,9,10,11,12,13,14,15,
 17,19		 - - -
012M 12  10,11,12,13,14,17,19,22,24,
 27,30,32		 - - -
16M 16  10,11,12,13,14,15,16,17,18,
 19,20,21,22,23,24,26		 12 33.8 .032
17M 17  6,7,8,9,10,11,12,13,14,15,
 16,17,18,19,20,21,22		 - - -
18M 18  6,7,8,9,10,11,12,13,14,15,
 16,17,18,19,20,21,22,24		 - - -
26M 26  6,7,8,9,10,11,12,13,14,15,
 16,17,18,19,20,21,22,23,
 24,25,26,27,28,29,30,32		 6 38.7 .034


AO-S 117 CV

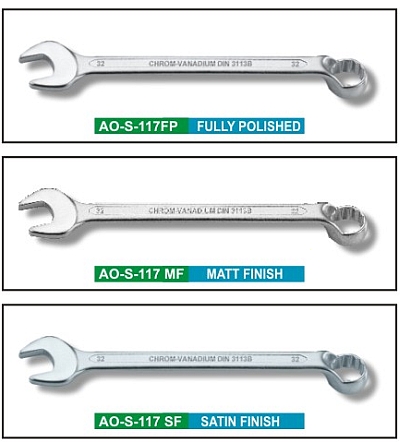

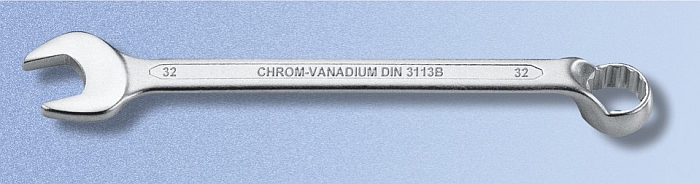

COMBINATION OPEN & DEEP OFFESET RING END SPANNERS - COLD STAMPED - PROFESSIONAL

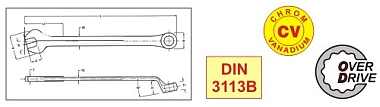

  DIN 3113B, Long Pattern
  Same size each end
  Chrome-Vanadium Steel
  Hardened and Tempered
SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 G.W.
KGS.		 VOLUME
Cu. M.
6 100 1000 16.4 .015
7 112 1000 20.3 .017
8 125 800 23.0 .022
9 138 600 23.0 .023
10 148 600 28.4 .025
11 158 500 27.4 .026
12 168 400 25.4 .025
13 185 300 25.7 .024
14 198 300 29.9 .028
15 210 200 22.6 .021
16 220 200 25.6 .024
17 232 200 31.0 .028
18 245 160 30.7 .027
19 256 120 26.4 .025
20 270 120 32.2 .029
21 280 100 28.6 .028
22 292 100 24.2 .022
23 305 80 23.9 .022
24 318 80 31.9 .029
25 328 60 26.4 .025
26 340 60 28.3 .028
27 352 60 31.4 .029
28 370 40 24.2 .024
29 370 40 24.2 .024
30 390 40 28.2 .027
32 412 40 33.3 .030
