| METRIC SIZES SETS |
| SET NO. |
No. of Pieces |
SIZES - mm |
QTY./CTN.
Set |
G.W.
KGS. |
VOLUME
Cu.M. |
| 6m |
6 |
8,9,10,11,13,17 |
80 |
25.6 |
.024 |
| 8m |
8 |
6,8,10,11,13,14,17,19 |
50 |
26.3 |
.027 |
| 88m |
8 |
8,9,10,11,13,17,19,21 |
40 |
25.9 |
.024 |
| 10m |
10 |
10,11,12,13,14,15,16,17,18,
19 |
30 |
26.4 |
.025 |
| 12m |
12 |
6,7,8,9,10,11,12,13,14,17,
19,22 |
30 |
24.8 |
.024 |
| 16m |
16 |
10,11,12,13,14,15,16,17,
18,19,20,21,22,23,24,26 |
12 |
27.2 |
.028 |
| 26m |
26 |
6,7,8,9,10,11,12,13,14,15,
16,17,18,19,20,21,22,23,24,
25,26, 27,28,29,30,32 |
6 |
30.0 |
.030 |
|
|
 |
|
| |

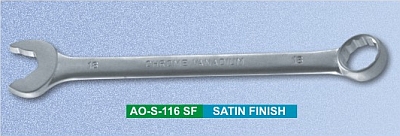

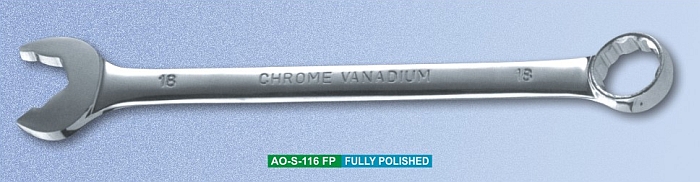

AO-S 116 CV
AO-S 116 CV, GS
COMBINATION QUICK SPANNER FLAT PANEL
 Drop Forged from CHROME VANADIUM STEEL
Duly hardened, nickel chrome plated
Each Head Set at 15 ° Angle |
SIZE
MM |
LENGTH
MM |
QTY./CTN.
Pcs. |
G.W.
KGS. |
VOLUME
Cu. M. |
| 6 |
100 |
1000 |
15.4 |
.012 |
| 7 |
110 |
1000 |
16.4 |
.013 |
| 8 |
120 |
800 |
23.0 |
.016 |
| 9 |
130 |
600 |
19.4 |
.014 |
| 10 |
140 |
600 |
22.4 |
.017 |
| 11 |
150 |
500 |
22.9 |
.017 |
| 12 |
160 |
400 |
22.2 |
.020 |
| 13 |
170 |
300 |
20.0 |
.020 |
| 14 |
180 |
300 |
23.6 |
.018 |
| 15 |
190 |
200 |
19.8 |
.018 |
| 16 |
200 |
200 |
20.8 |
.019 |
| 17 |
210 |
200 |
22.4 |
.021 |
| 18 |
220 |
160 |
22.7 |
.023 |
| 19 |
230 |
120 |
18.0 |
.020 |
| 20 |
240 |
120 |
21.4 |
.016 |
| 21 |
250 |
100 |
18.5 |
.018 |
| 22 |
260 |
100 |
19.9 |
.018 |
| 23 |
270 |
80 |
18.6 |
.022 |
| 24 |
280 |
80 |
22.3 |
.022 |
| 25 |
290 |
60 |
19.8 |
.021 |
| 26 |
300 |
60 |
20.3 |
.021 |
| 27 |
310 |
60 |
23.0 |
.016 |
| 28 |
320 |
40 |
17.2 |
.020 |
| 29 |
330 |
40 |
18.6 |
.021 |
| 30 |
340 |
40 |
21.0 |
.017 |
| 32 |
350 |
40 |
23.0 |
.021 |
|
| |
|
|
|
